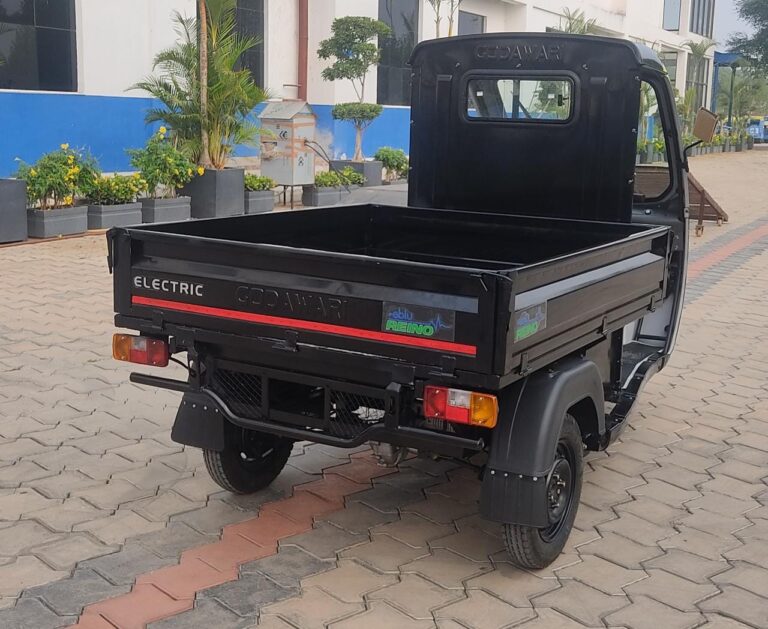

eblu-Reino - E Loader
When it’s about business, challenges will definitely come your way, but if you have a caring companion then nothing can hold you back!
Presenting Eblu Reino E-Loader, designed for long driving range and powerful performance along with comfort. It comes in dual tone shades and a sturdy steel skeletal body that gives ultimate safety.
So get ready to ride on the Eblu Reino
Technical Specification
E Auto
Battery & Power
Transmission
Home Charger
Weights
Exterior
E Auto
| 1) Vehicle category | L5N Cargo |
| 2) Seating Capacity | Driver |
Battery & Power
| Battery type, Voltage | Lithium Ion,51.2V |
| Battery capacity | Rated 10.2 kWH |
| Peak Power | 8KW@ rpm |
| Peak Torque | 49 Nm |
| Motor | 5.5 KWH |
| Warranty | 3 years & 80,000km |
Transmission
| Transmission Type | PT Gear with differential (Integral) |
Home Charger
| Type | 48v. 30A Off Board |
| Charge Duration | 6 Hr 30 Min |
Weights
| Gross Vehicle Weight (With Battery) | 968 Kg |
| Vehicle Kerb Weight (With Battery) | 493 Kg |
| Payload Capacity | 500 Kg |
Exterior
| Roof Top | Hard Top (DCPD Panel Top) |
Suspensions, Brakes & Safety
Dimensions
Performance
Suspensions, Brakes & Safety
| Front | Hydraulic Shock Absorber With Coil Spring |
| Rear | Hydraulic Shock Absorber With Coil Spring Independent Trailing Arm |
| Steering | Tubular Straight Handle bar type |
| Brake Front & Rear | Hydraulic Actuated Drum Brake |
| Tyre | 3.75” x 12“ 76B 6PR |
| Headlights | Twin head lamp with halogen bulbs |
| Tail Lamps | Integrated tail lamp with tail stop & reverse arrangement. |
Dimensions
| Overall Length | 3035 mm |
| Overall Width | 1385 mm |
| Overall Height | 1775 mm |
| Minimum Ground Clearance | 235 mm |
| Wheel Base | 2110 mm |
| Minimum Ground Clearance | 235 mm |
| Cargo Box (L x W x H) | 1549 mm x 1350mm x 319mm |
Performance
| Top Speed | 3035 mm |
| Typical Driving Range (On Road) | 1385 mm |
| Gradeability | 1775 mm |
| Certified Range | 235 mm |
| Regenerative Braking | 2110 mm |
| Warranty | 235 mm |
| No Free Services | 10 |
